Deck Layout Calculator - Stumps Bearers Joists and Boards with Cost

Deck Length
Deck Width
Ground Fall
?
Ground Level Fall in width of Deck. Adjusts Stump Lengths for sloping ground
Boards
↓ Board Width
Board Thick
?
Gaps adjusted to fit full width boards, equal to or nearest larger than entered Gap.
For exact gap see Board Fit Options
Board Gap
Stumps
↓ Stump Width
?
Enter Stump Height from ground level.
Stump Height + Bearer Depth + Joist Depth + Board Thickness = Total Deck Height above ground level.
Adjust stump height in results if stumps cast into footing.
Stump Height
Stump Centers
Stump Set In
Footing Diameter
?
Footing dimensions used to calculate concrete volume. Assumes Stumps sit on top of footings at ground level - fixed with stirrups cast into concrete footings.
Footing Depth
Bearers
↓ Bearer Thick
Bearer Depth
?
Stumps notched to house Bearers. Requires longer stumps to maintain deck height
 Notched Stump
?
Bearer Set In = Joist Overhang from OUTSIDE of bearer to end of joist (edge of deck)
Bearer In Inner
?
From OUTSIDE of bearer to end of joist (edge of deck)
Bearer In Outer
Bearer Centers
Joists
↓ Joist Thick
Joist Depth
Joist Centers
?
If your deck is longer than the deck boards, and you don't want to butt-joint them together, install a breaker board. Enter the centres of the middle joists to support the breaker board. If the breaker board is not dead centre, add or subtract 1 joist to centre it.

Deck Breaker Board
Mid Joist Center
?
Joist Set In allows Deck Board Overhang at each end of deck
End Joist In
?
Rim Joists are attached perpendicular to standard joists, along the edges of the deck.
They provide lateral support for the ends of the joists, while capping off the edges of the deck.
Select an option to see placements in diagrams.
Joist Length is shortened to fit Rim Joists.
Rim Joists
Material List and Costs Share Current Calculation

Scale

Deck plan with full dimensions - Stumps, Bearers, Joists, Boards, Lumber Costs


?
Stump base (ground level) to board top
Total Deck Height   Deck Area
?
Use correct diagonal to square deck.
When both diagonals = deck is square.
Correct Diagonal to Square Deck =

... Enter Linear Costs


Stumps

Premix Concrete Bags

STUMP Running set-out points along Deck ~ along Bearer (to near side of each stump)
Mark-out
Stump Height

Deck Stumps and Bearers diagram


STUMP Running set-out points across Deck ~ along Joist from Inside (to near side of each stump)
Mark-out

Ground Level Fall for Sloping Ground

Deck Stumps and Joists diagram


Bearers



?
If you use a wall plate (ledger) to attach Joists to an existing wall, the plate will replace the first bearer.
Adjust Bearer positions to suit.
Bearer Set In Inner (for Joist overhang or to allow for Wall Plate / Ledger)

BEARER Running set-out points, across Deck ~ along Joist from inner side
(to near side of each bearer)
Mark-out

Deck Bearers diagram


Joists



JOIST Running set-out points along Bearer (to near side of each joist)
Mark-out

Deck Joists diagram


Deck Boards



Mark Every Boards.

BOARD Running set-out points. Select board multiples to set out board placement.
Mark-out

Deck Joists and Boards diagram





There are many ways to stagger board joins - randomly or in a pattern. This calculator spaces board joins with a 3 or 4 butt pattern (3 or 4 boards between joins per joist) Drag Adjust Start and Adjust Board to spread the joins and see how the patterns look over the entire deck.
This is intended as a visual representation of options only, and may effect offcut re-use and increase waste!
DO NOT pre-cut boards. Measure and cut to fit joist centers.
Allow extra board overhang (Joist Set in) and trim deck edge after installation.


Board Length
?
Board Length and Longest board length from join to join (over joists) you can cut from this length board.


?
Starts with first board as long as possible. Joins are staggered back from this point. Adjust shorter to move all joins to the left, to better space joins over entire deck.
Adjust Start
?
After Start Board, lengths are adjusted as long as possible, to join over joist centers. Shortening this length may better space joins over entire deck. This may effect offcut re-use and increase waste!
Adjust Board

?
Joins are spaced so there are 2, 3 or 4 boards between each join per joist.
Join Pattern Scale


Drag Adjust Start and Adjust Board sliders to see how the join patterns look over the entire deck.



Enter Costs per Linear Foot and % waste to calculate Total Cost and Material List


All dimensions are actual physical finished sizes.
Stumps + % Waste @ $ ft
Bearers + % Waste @ $ ft
Joists + % Waste @ $ ft
Boards + % Waste @ $ ft
Connections:





Enter cost per linear metre and wastage % for Stumps, Bearers, Joists and Boards to Calculate individual and Total Costs. Linear metres and cost are auto updated when the deck is re-calculated, with individual costs for stumps, bearers and joists displayed in each section. Hit + and - buttons to open or close spacing, re-calculating the deck to find how different spacing options effect cost and materials.
If your deck is slightly out of square (different widths each end), calculate board spacing results for both widths, and set out each end to suit. Hopefully the slight difference in board gaps at each end of deck is acceptable, compared to equal gaps and cutting the last board at an angle.

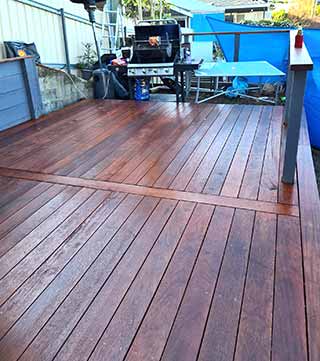

Hugh's Deck Project.
